Ford Ranger Dynamic Headlight Adapter (2024-2026)

Looking for a way to connect accessories to your 2024+ Ford Ranger Headlight circuits? This adapter allows complete Plug-and-Play operation and is compatible with all 2024+ Ranger Headlight variations!

Circuits Provided:

• DRL
• Turn Signal*
• Ground

Features and Benefits:

• Provides access to select headlamp circuits.
• Simple way to control LED’s with integrated switchback turn signals.
• Easy installation - just plug the new adapter into your existing factory connector.
• Can also be used as a relay trigger.
• No cutting or splicing required - just plug the new adapter into your existing factory connections and then use the provided pigtail to connect the desired circuits.
• Maintains your factory headlight warranty.
• Only OEM quality connectors & wire are used – don’t settle for anything less!
• Assembled in USA!

*Note: The Turn Signal output only provides power for the headlight the adapter is connected to. If you need outputs for both Left and Right, an adapter for each headlight is needed.

Fitment

• 2024-2026 Ford Ranger (All Headlights & Trims)

Specs & Installation

What’s Included:

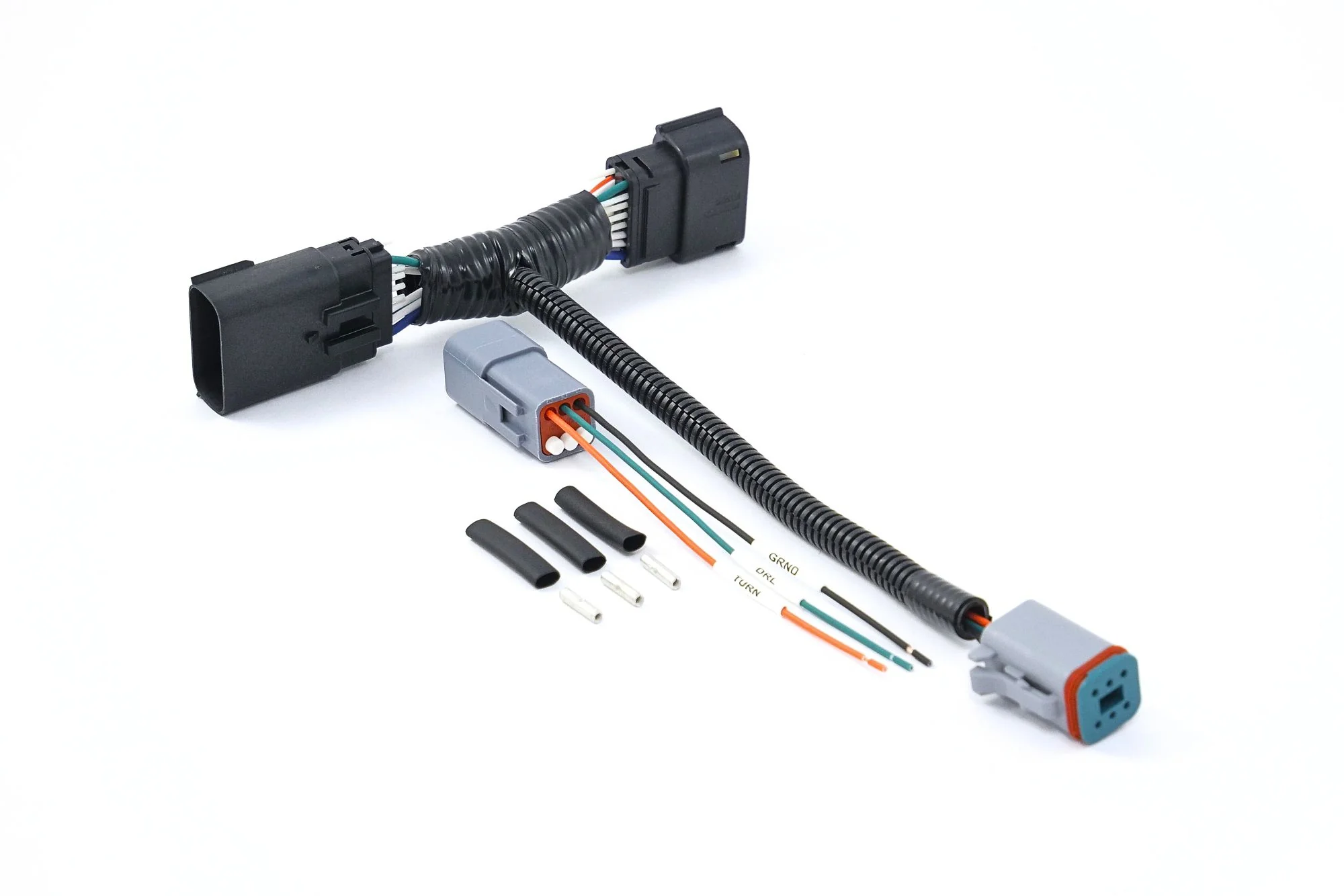

• One 6-inch adapter with weatherproof connectors
• Deutsch Pigtail (Starkey SKU# 5018)
• 5 Year Limited Warranty

Technical Specifications:

• Max Continuous Amp Draw: 2
• For 12v System

Installation:

• Installation difficulty = Low
• Installation time = 15 minutes
