Dodge Ram 1500 Dynamic Headlight Adapter for LED Headlights (2019-2024)

Looking for a way to connect accessories to your Ram 1500 LED headlights? This adapter allows complete Plug-and-Play operation and is compatible with 2019-2024 Ram 1500 trucks that came with Mid-Level and Premium LED headlights from the factory.

If your truck has Halogen Headlights, please use SKU# 10434.

Circuits Provided:

• Parking
• DRL
• Turn Signal
• Ground

Features and Benefits:

• Provides access to select headlamp circuits.
• The best way to power accent lights, turn signals, or any grille that has LED running/marker lights. Also makes powering backlights found on some LED Light Bars/ Pods very simple.
• Simple way to control LED’s with integrated switchback turn signals.
• Can also be used as a relay trigger.
• No cutting or splicing required - just plug the new adapter into your existing factory connections and then use the provided pigtail to connect the desired circuits.
• Maintains your factory headlight warranty.
• Only OEM components are used - don’t settle for anything less!
• Assembled in the USA!

Fitment

• 2019-2024 Ram 1500 Big Horn (With LED Headlights)
• 2019-2024 Ram 1500 Laramie (With LED Headlights)
• 2019-2024 Ram 1500 Rebel
• 2019-2024 Ram 1500 Limited Longhorn
• 2019-2024 Ram 1500 Limited
• 2021-2024 Ram 1500 TRX

Specs & Installation

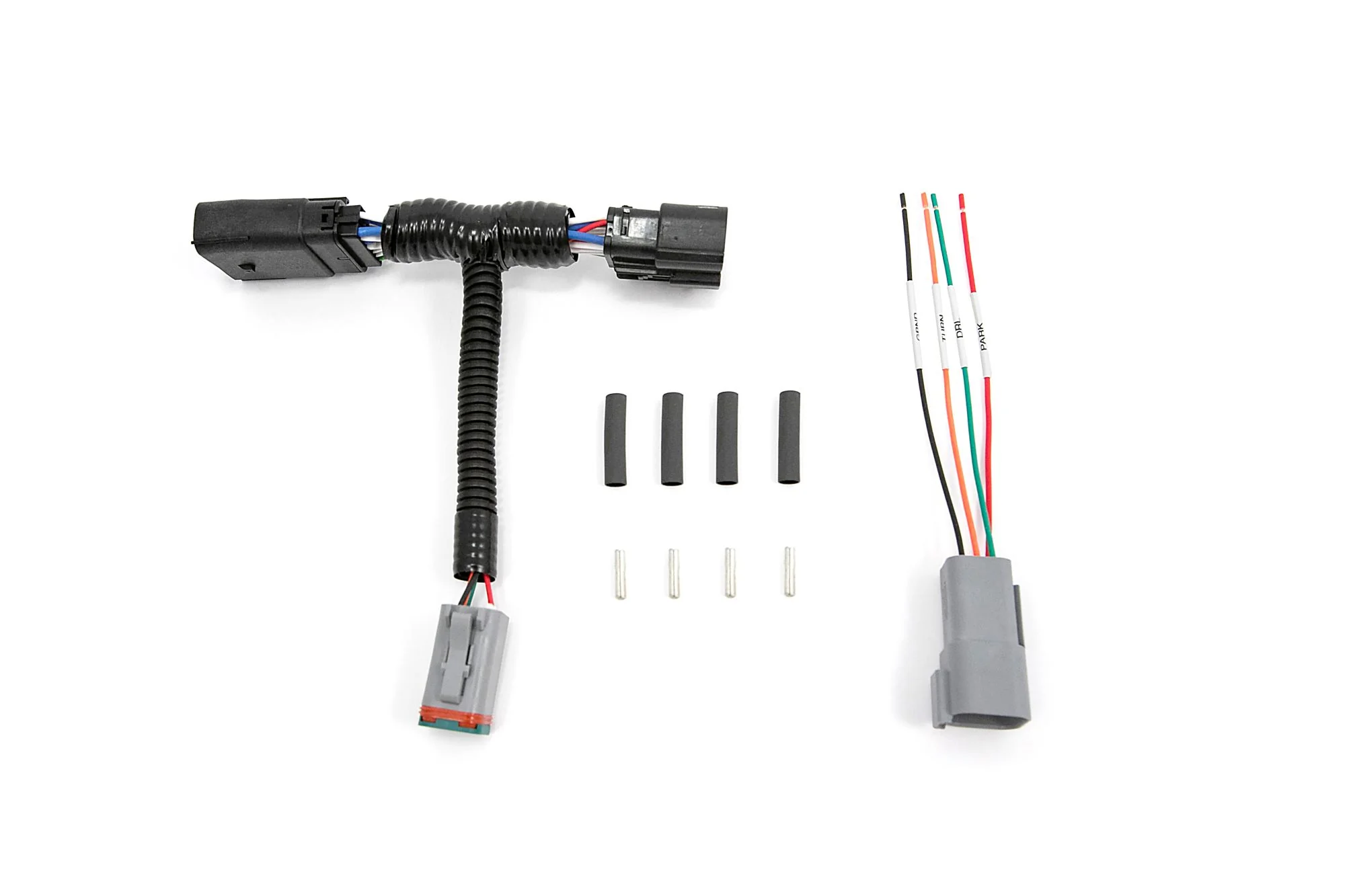

What’s Included:

• One 6-inch adapter with weatherproof connectors
• Deutsch Pigtail (Starkey SKU# 5013)
• 5 Year Limited Warranty

Technical Specifications:

• Max Continuous Amp Draw (Per Circuit): 2
• For 12v System

Installation:

• Installation difficulty =  Low
• Installation time = 10 minutes
